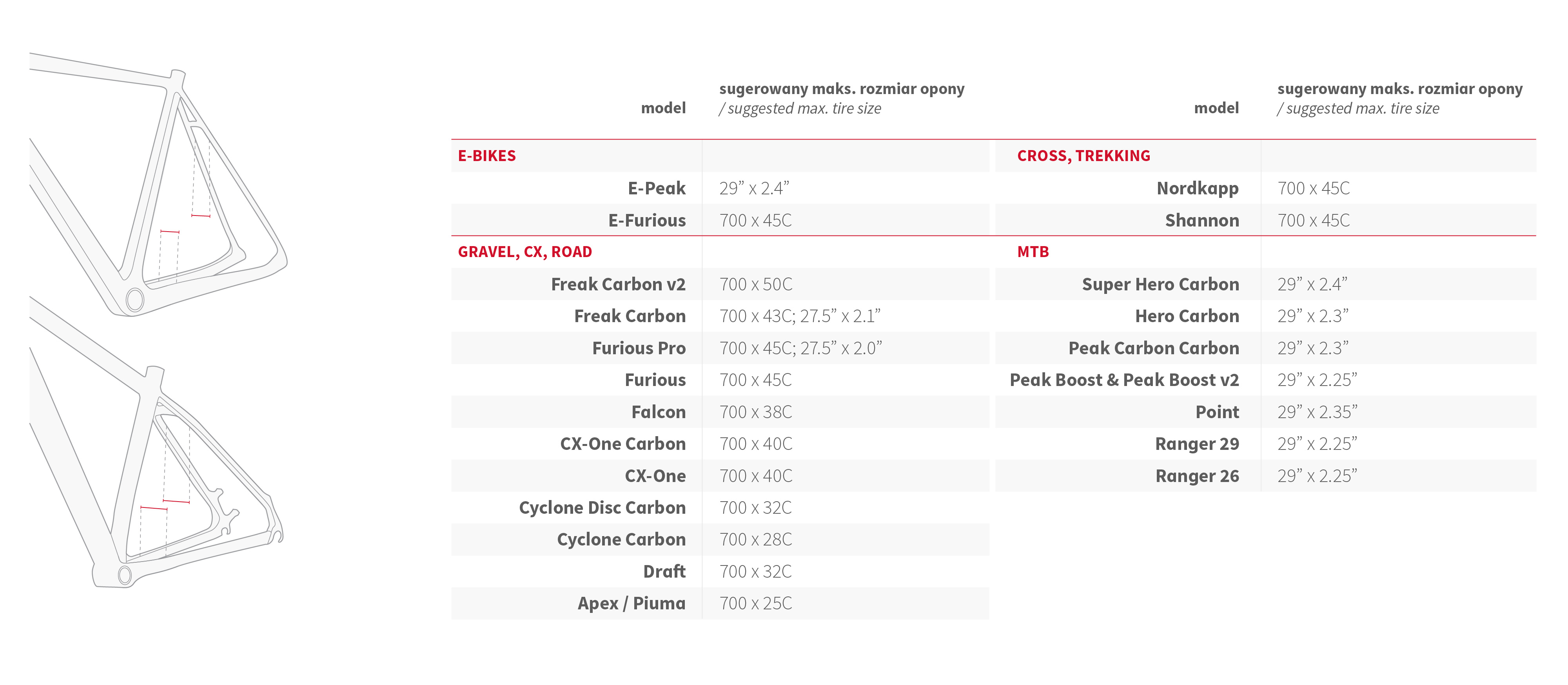

The Falcon frame is the perfect basis for creating a very versatile bike. It will be a good choice for the construction of the first gravel, but also for other interesting projects. The frame and fork are made of aluminum. Road or gravel tires up to 40 mm wide can be used. The cables routed to the outside make the assembly very easy. The possibility of mounting the front derailleur allows the use of single or double cranks.

Seatpost: 31.6mm
Front derailleur: 34.9 mm
Headset: semi-integrated (ZS44 / ZS44 mm)
BB width: 68 mm
BB type: BSA
Axle type: front QR 100mm, rear QR 135mm
Brake mount front / rear: Post Mount / Rear: Direct Mount
Weight: 2711 g (frame size M 1850 g + fork 790 g + headsets 71 g)

Colors: black/grey, grey/black

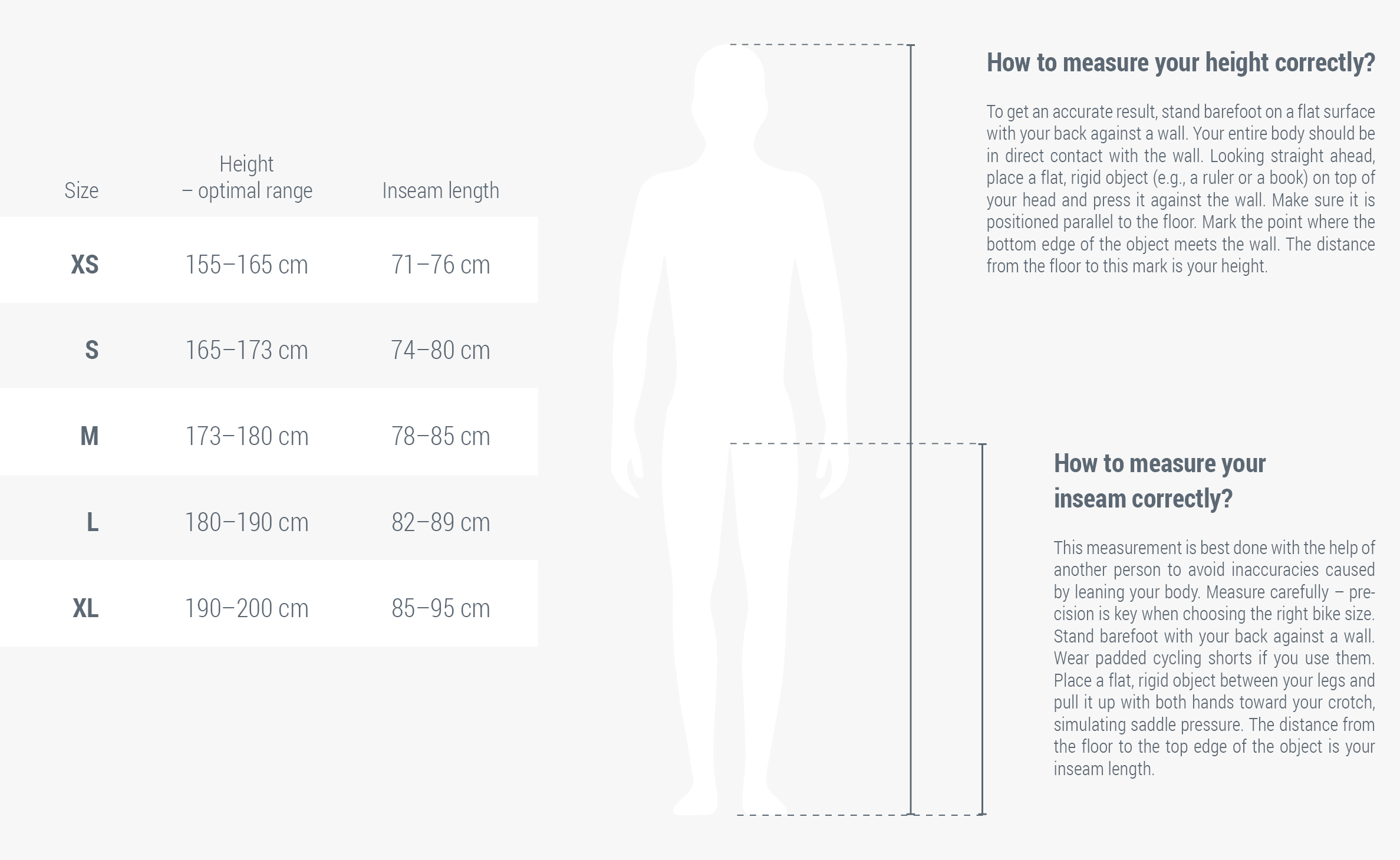

Sizes: XS, S, M, L, XL

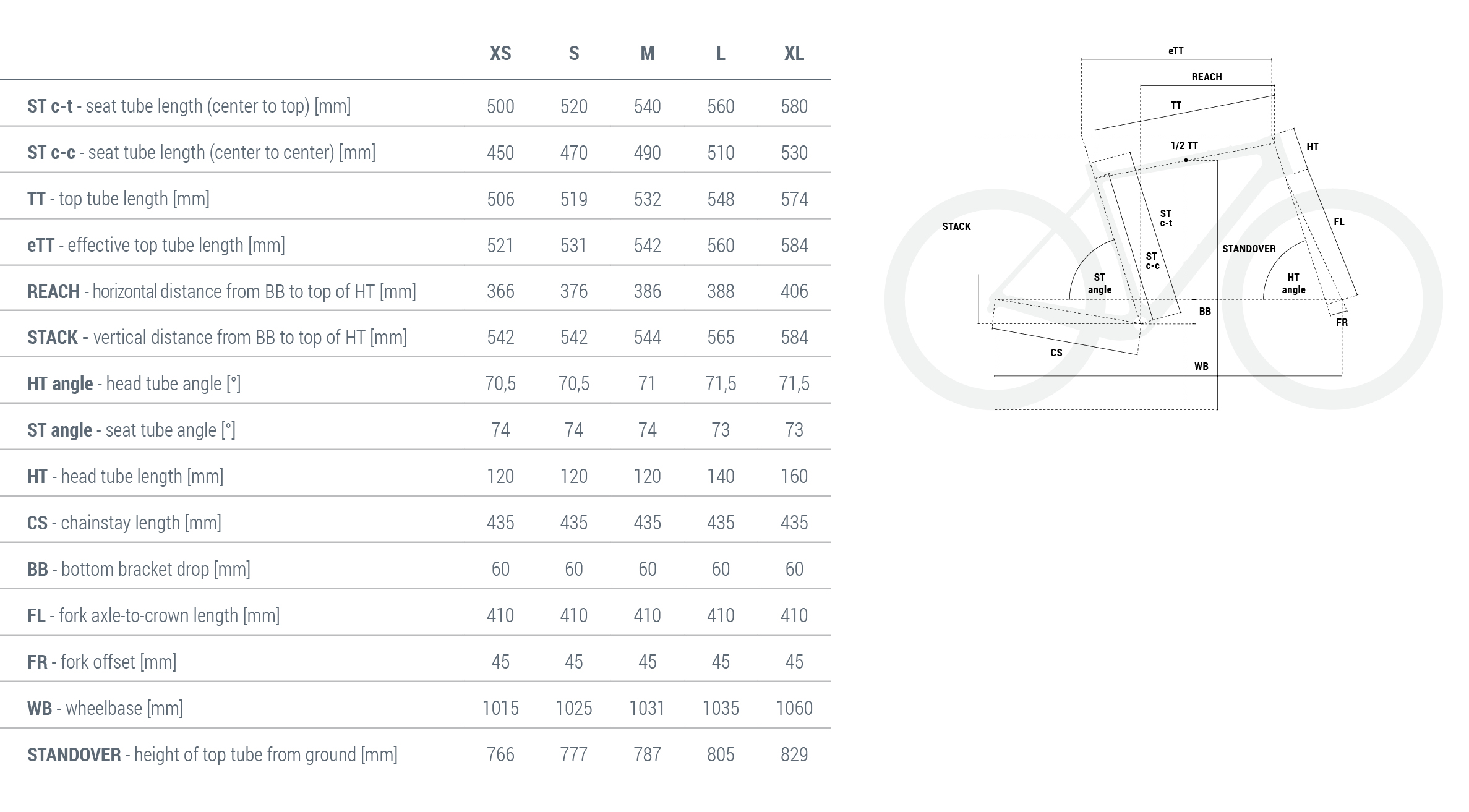

Geometry
Parameters
