The Freak Carbon v2 gravel frame is an evolution that takes off-road riding to the next level. Designed for racing, it features a sport geometry optimised for performance while still allowing the bike to be adapted for bikepacking when needed. The addition of an integrated headset enables internal cable routing through the head tube, significantly improving both the aesthetics and aerodynamics of the frame. Freak Carbon v2 is a carbon frameset that includes a lightweight and stiff frame paired with a full carbon fork, giving you the confident control and responsiveness you expect from a premium build.
Compatibility with cutting-edge drivetrain systems, including SRAM Eagle Transmission (AXS) and Shimano Di2, opens up new possibilities for custom builds tailored to your style of riding. The frame also features a flat mount brake interface designed for 160 mm rotors, allowing direct calliper installation without adapters. The 5 mm longer asymmetric chainstay improves stability and handling in demanding terrain, while also allowing for wider tyre clearance up to 700×50C. This approach is particularly popular in modern gravel and mountain bikes, where balancing stiffness, clearance, and weight is essential. It ensures better power transfer to the rear wheel and optimised stiffness, resulting in greater pedalling efficiency and performance.
MAIN FEATURES
- Thru axles

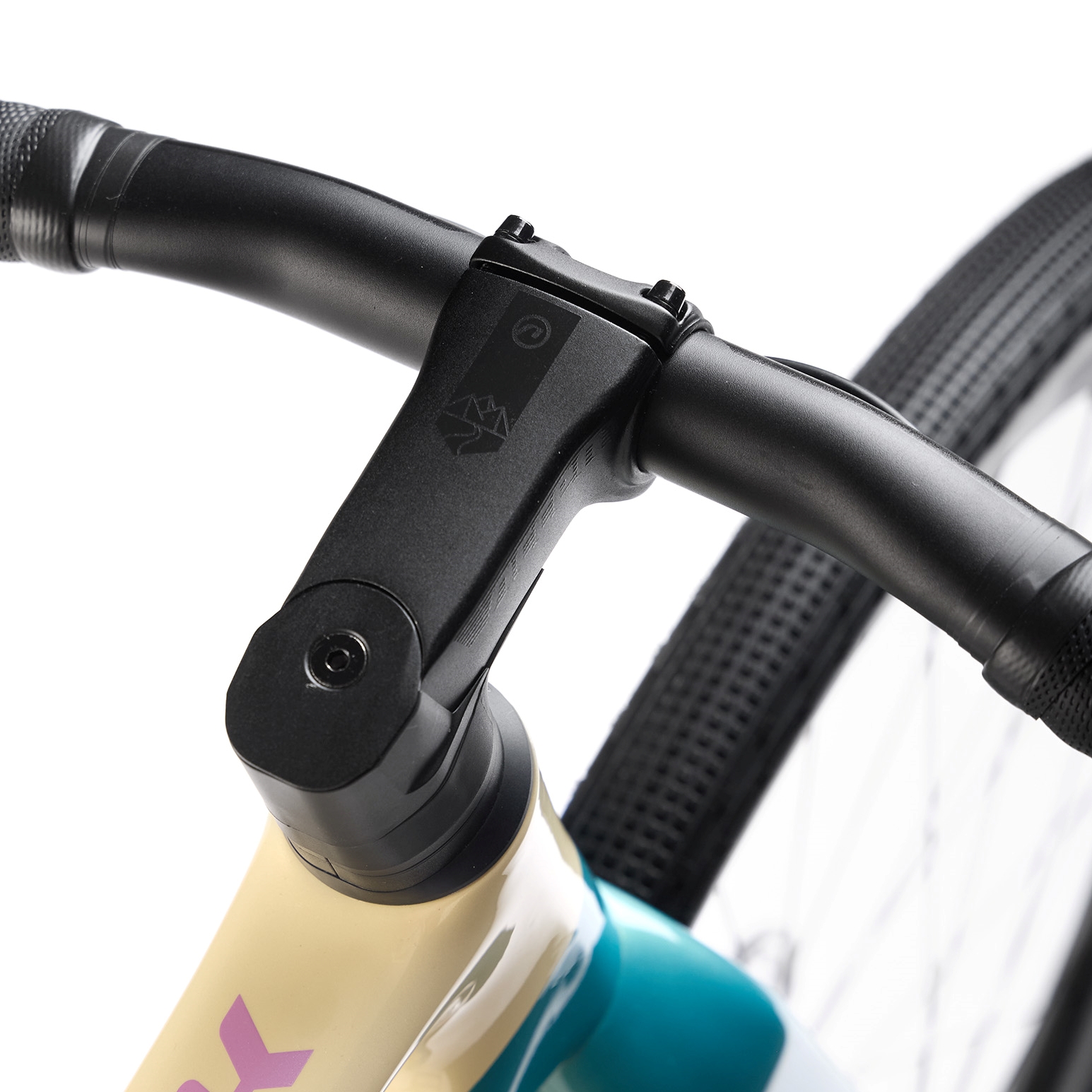

- Integrated headset (IS52/IS52) with internal cable routing through the head tube

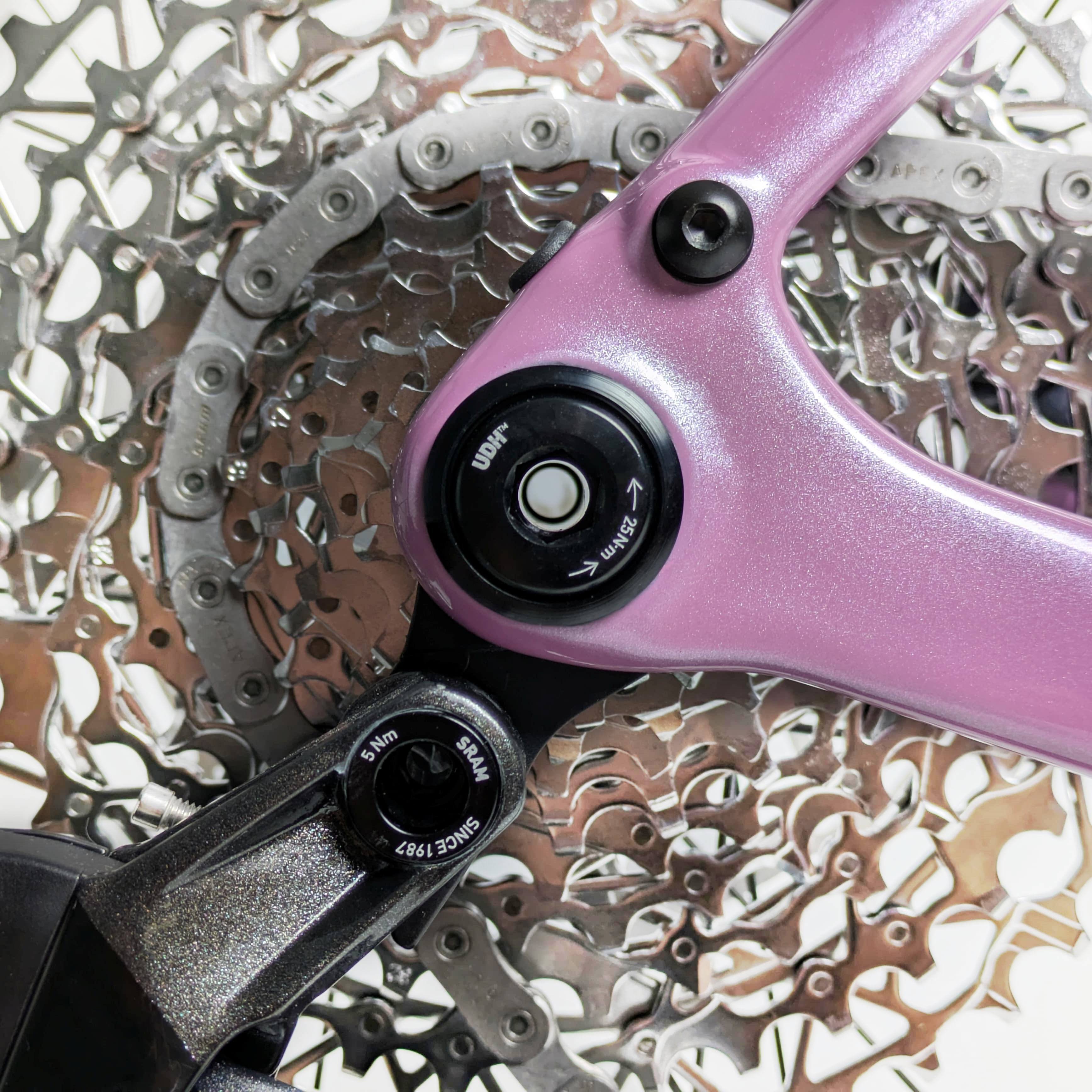

- UDH hanger and SRAM Eagle Transmission compatibility (including AXS)
- Shimano Di2 compatible
- Flat Mount disc brake mount for 160 mm rotors (no adapter required)

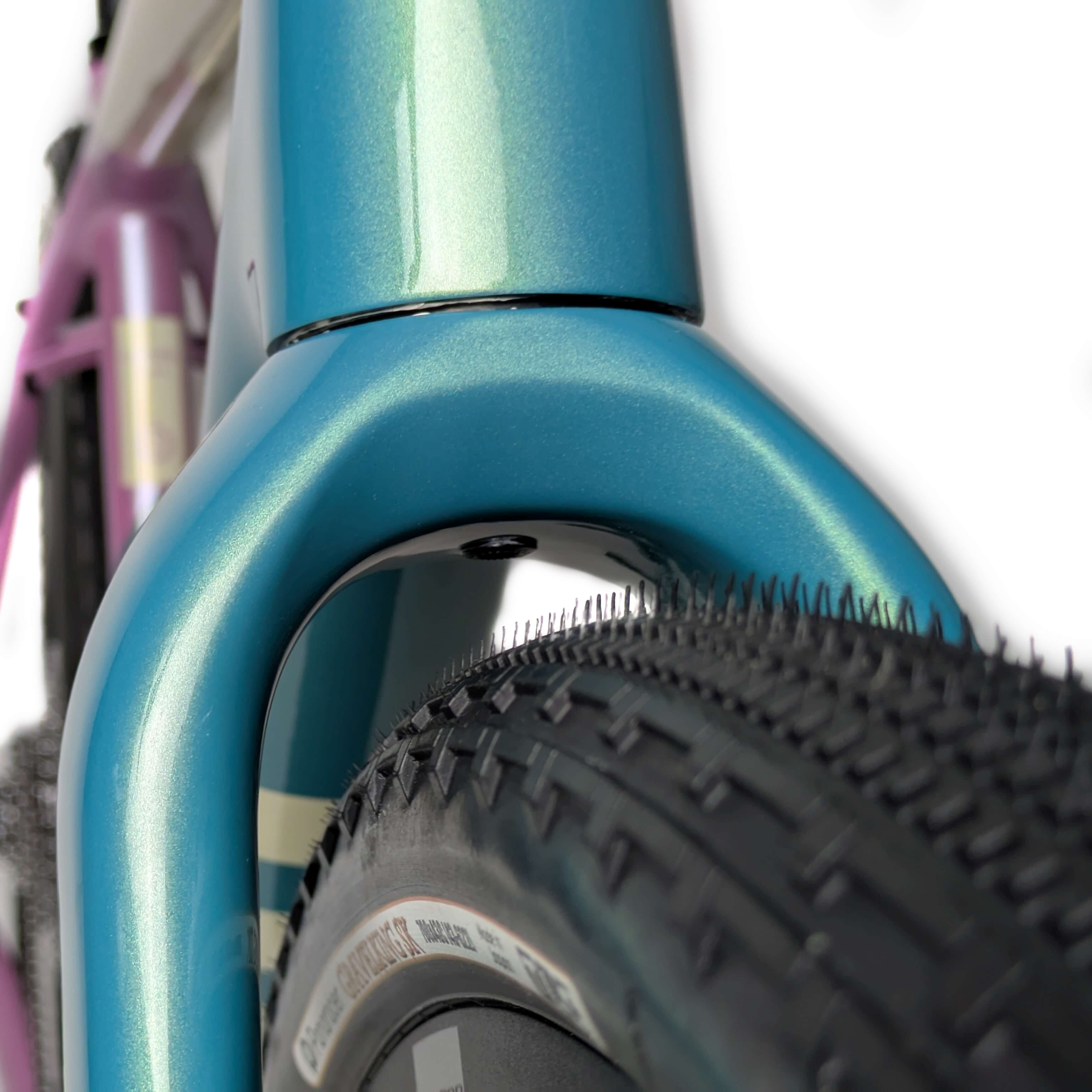

- Tyre clearance up to 700×50C and 650B wheel compatibility

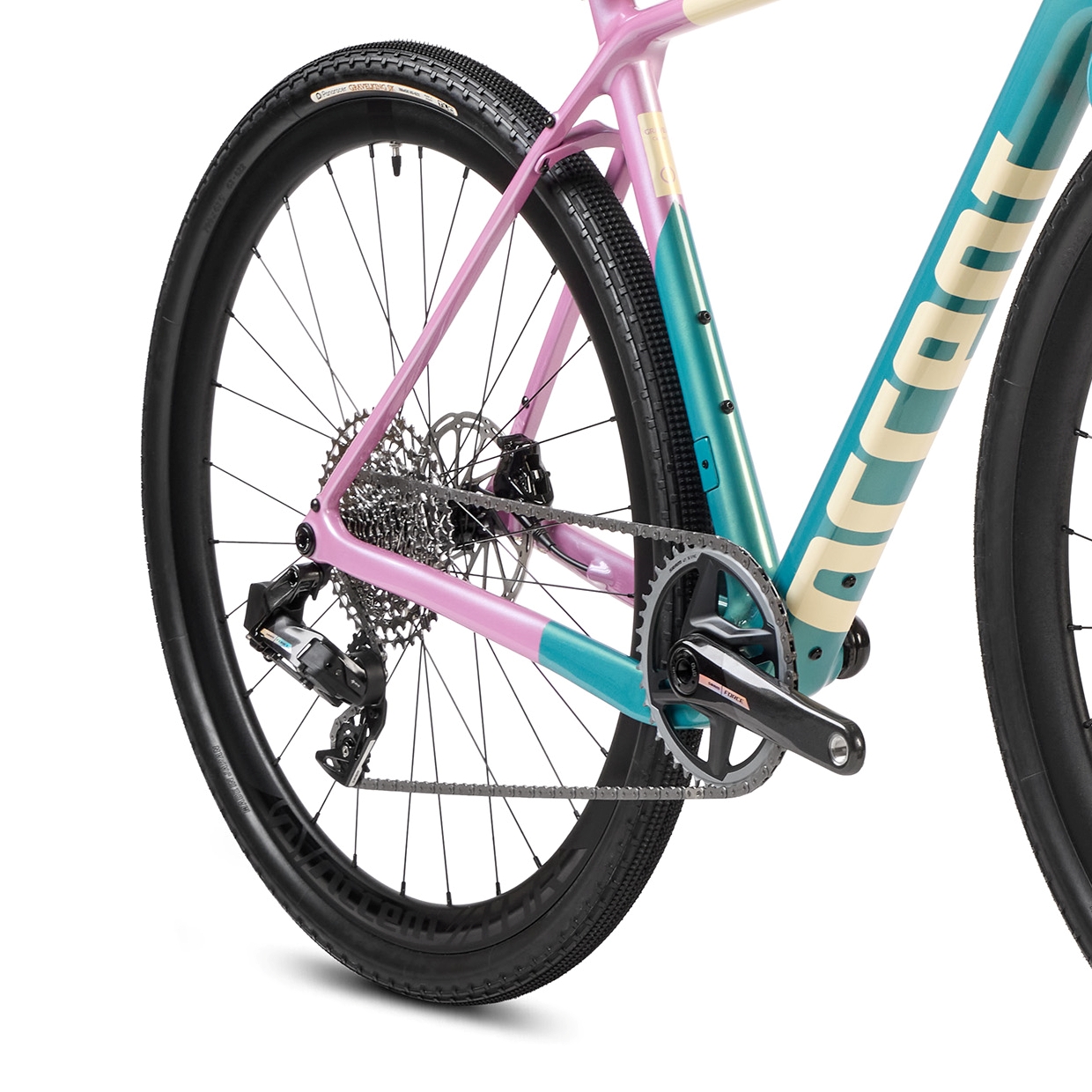

- Asymmetric chainstay extended by 5 mm compared to Freak V1
- Compatible with 27.2 mm dropper posts
- Multiple mounting points for bags, cages, and additional bottle cages

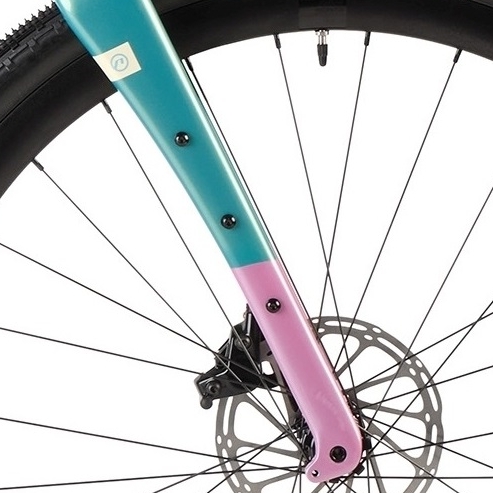

- Carbon fork with triple mounting points
- Removable seatstay bridge for mudguard installation
- Compatible with front derailleur via detachable mount
SPECIFICATION
Seatpost diameter: 27.2 mm
Front derailleur: detachable hanger
Headsets: integrated IS52/IS52 (FSA 8.7/7 mm standard)
BB width: 86.5 mm
BB type: Press Fit 41 mm
Axle type: front 12×100 mm; rear 12×142 mm
Brake mount: Flat Mount
Max. seatpost insert: XS – 190 mm, S – 235 mm, M – 265 mm, L – 290 mm
Weight: 1940 g (size M: frame 1350 g + fork 480 g + headset 110 g)
Colors: sand-green, navy-pink, black‑grey, ultraviolet
Sizes: XS, S, M, L
With its low weight, advanced standards, and thoughtful mounting options, Freak Carbon v2 is a go-to choice for riders who demand precision, speed, and a touch of adventure in one cutting-edge design.
